Seco

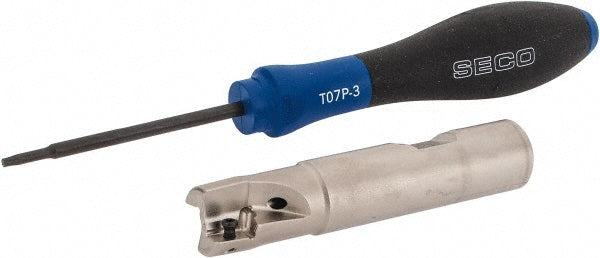

Indexable End Mills - Seco 02772634
MFR# 02772634Cat# R217.69-00.625-3-10-2ASeries Turbo 10
$499.15List $530.29
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Seco 02772634 indexable end mills. Series Turbo 10.
Specifications
Complete insert compatibilityXOEX; XOMX
Coolant throughYes
Cutter styleR217.69-10
Head length1.0830
Insert compatibilityXO.X 10T3..
Insert holding methodScrew
Iso numberR217.69-00.625-3-10-2A
Lead angle90
Manufacturers catalog numberR217.69-00.625-3-10-2A
Maximum depth of cut0.3540
Maximum rpm29400
Number of cutter inserts2
Number of flutes2
RakeNegative
Shank diameter in5/8
Shank length2.1690
Shank typeWeldon Flat
Tool applicationMilling
Tool materialSteel
Usable length2.2990
