Seco
Indexable End Mills - Seco 02772707
MFR# 02772707Cat# R217.69-01.00-0-10-3ASeries Turbo 10
$570.32List $605.89
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description

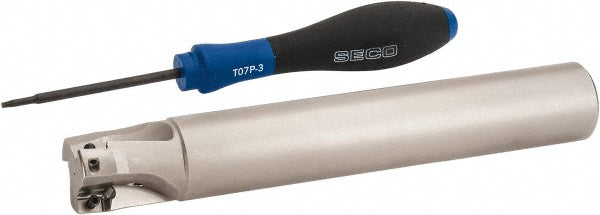

The Seco 02772707 indexable end mills. Series Turbo 10.
Specifications
Complete insert compatibilityXOEX; XOMX
Coolant throughYes
Cutter styleR217.69-10
Head length1.2800
Insert compatibilityXO.X 10T3..
Insert holding methodScrew
Iso numberR217.69-01.00-0-10-3A
Lead angle90
Manufacturers catalog numberR217.69-01.00-0-10-3A
Maximum depth of cut0.3540
Maximum rpm23500
Number of cutter inserts3
Number of flutes3
RakeNegative
Shank diameter in1
Shank length5.4130
Shank typeCylindrical
Tool applicationMilling
Tool materialSteel
