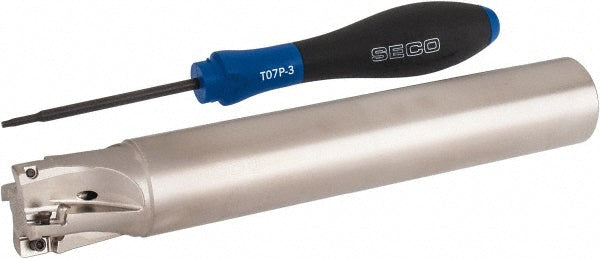

Indexable End Mills - Seco 02772710
MFR# 02772710Cat# R217.69-01.00-0-10-4ASeries Turbo 10
$621.79List $649.09
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description
The Seco 02772710 indexable end mills. Series Turbo 10.
Specifications
Complete insert compatibilityXOEX; XOMX
Coolant throughYes
Cutter styleR217.69-10
Head length1.2800
Insert compatibilityXO.X 10T3..
Insert holding methodScrew
Iso numberR217.69-01.00-0-10-4A
Lead angle90
Manufacturers catalog numberR217.69-01.00-0-10-4A
Maximum depth of cut0.3540
Maximum rpm23500
Number of cutter inserts4
Number of flutes4
RakeNegative
Shank diameter in1
Shank length5.4130
Shank typeCylindrical
Tool applicationMilling
Tool materialSteel
