Seco

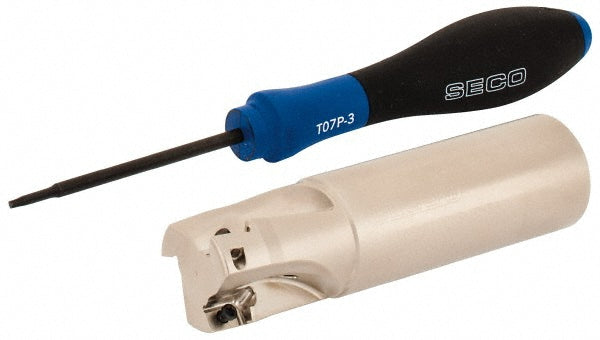

Indexable End Mills - Seco 02772711
MFR# 02772711Cat# R217.69-01.00-3-10-3ASeries Turbo 10
$605.23List $631.80
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Seco 02772711 indexable end mills. Series Turbo 10.
Specifications
Complete insert compatibilityXOEX; XOMX
Coolant throughYes
Cutter styleR217.69-10
Cutting diameter1
Head length1.28
Insert compatibilityXO.X 10T3..
Insert holding methodScrew
Iso numberR217.69-01.00-3-10-3A
Lead angle90
Manufacturers catalog numberR217.69-01.00-3-10-3A
Maximum depth of cut0.3540
Maximum rpm23500
Number of cutter inserts3
Number of flutes3
Overall length3.7800
RakeNegative
Shank diameter in1
Shank length2.5000
Shank typeWeldon Flat
Tool applicationMilling
Tool materialSteel
Usable length2.6380
