Seco

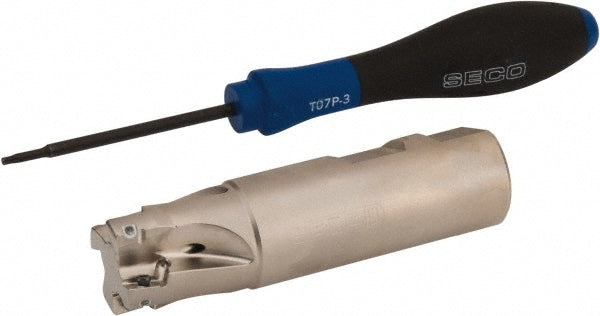

Indexable End Mills - Seco 02772713
MFR# 02772713Cat# R217.69-01.00-3-10-4ASeries Turbo 10
$601.83List $639.36
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description
The Seco 02772713 indexable end mills. Series Turbo 10.
Specifications
Complete insert compatibilityXOEX; XOMX
Coolant throughYes
Cutter styleR217.69-10
Cutting diameter1
Head length1.28
Insert compatibilityXO.X 10T3..
Insert holding methodScrew
Iso numberR217.69-01.00-3-10-4A
Lead angle90
Manufacturers catalog numberR217.69-01.00-3-10-4A
Maximum depth of cut0.3540
Maximum rpm23500
Number of cutter inserts4
Number of flutes4
Overall length3.7800
RakeNegative
Shank diameter in1
Shank length2.5000
Shank typeWeldon Flat
Tool applicationMilling
Tool materialSteel
Usable length2.6380
