Seco

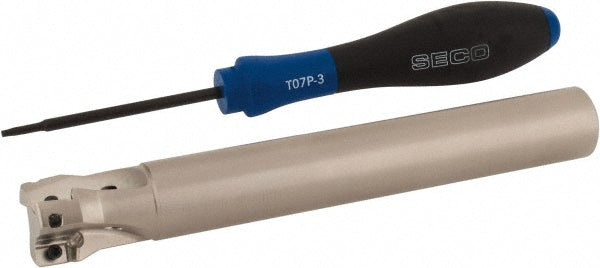

Indexable End Mills - Seco 02772719
MFR# 02772719Cat# R217.69-00.875-0-10-3ASeries Turbo 10
$570.32List $605.89
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Seco 02772719 indexable end mills. Series Turbo 10.
Specifications
Complete insert compatibilityXOEX; XOMX
Coolant throughYes
Cutter styleR217.69-10
Cutting diameter7/8
Head length1.181
Insert compatibilityXO.X 10T3..
Insert holding methodScrew
Iso numberR217.69-00.875-0-10-3A
Lead angle90
Manufacturers catalog numberR217.69-00.875-0-10-3A
Maximum depth of cut0.3540
Maximum rpm25000
Number of cutter inserts3
Number of flutes3
Overall length5.9060
RakeNegative
Shank diameter in3/4
Shank length4.7240
Shank typeCylindrical
Tool applicationMilling
Tool materialSteel
