Seco

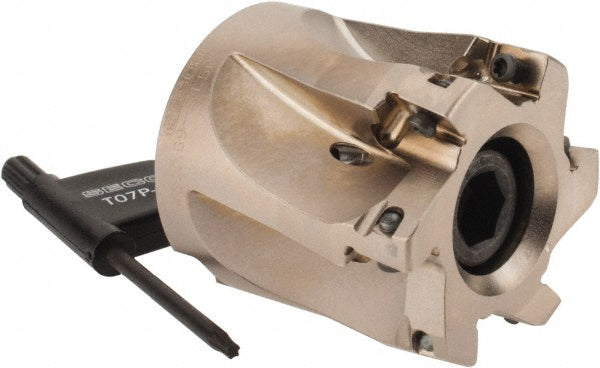

Indexable Milling Cutters - Seco 02773433
MFR# 02773433Cat# R220.69-01.50-10-6ASeries Turbo 10
$765.50List $813.24
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Description
The Seco 02773433 indexable milling cutters. Series Turbo 10.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeXO X10T3
Complete insert compatibilityXOEX 11; XOMX 10
Coolant throughYes
Counterbore diameter0.3200
Cutter styleR220.69
Cutting directionRight Hand
Cutting edge length0.3540
Hub diameter (mm)35.00
Insert holding methodClamp; Screw
Keyway width0.3200
Lead angle0
Manufacturers catalog numberR220.69-01.50-10-6A
Maximum cutting diameter in1-1/2
Maximum depth of cut0.3540
Maximum ramping angle1.50
Number of cutter inserts6
Number of flutes6
Overall height1.5750
Pitch typeFine
RakeNegative
Rake angle-4.00
Toolholder materialSteel
Tool applicationRamping
