Seco

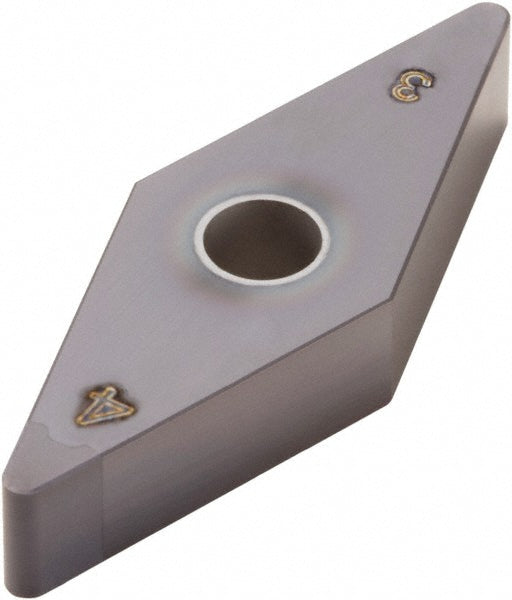

VNGA160408S-01525-L1-U Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade CBN060K, TiAlSiN - Seco 02776352
MFR# 02776352ISO/ANSI# VNGA332S-00625-L1-USeries VNGA-Flat Top
$196.17
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeCBN060K
MaterialPolycrystalline Cubic Boron Nitride (PCBN)
CoatingTiAlSiN
Description
The Seco 02776352 is a VNGA160408S-01525-L1-U polycrystalline cubic boron nitride (pcbn) indexable insert, grade CBN060K, TiAlSiN coated. Suited for hard material.
Specifications
Chip breakerFlat Top
Clearance codeN
Coating finishTiAlSiN
Coating processPCBN
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle35degree
Industry standard numberVNGA332S-00625-L1-U
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.2598
Insert materialPolycrystalline Cubic Boron Nitride (PCBN)
Insert shapeDiamond 35
Insert size code332
Insert styleVNGA
Insert thickness in3/16
Iso codeVNGA160408S-01525-L1-U
Lead angle35degree
Length range0.7000 - 10.0000
Manufacturers catalog number02776352
Manufacturer gradeCBN060K
Material gradeH10; H20
Maximum depth of cut0.0200
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialHard Material
RakeNegative
Rake angle0
Relief angle0
Secondary workpiece materialSuper-alloys & Titanium
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tip length0.1100
Tolerance codeG
Width in3/8in
Wiper edgeNo
