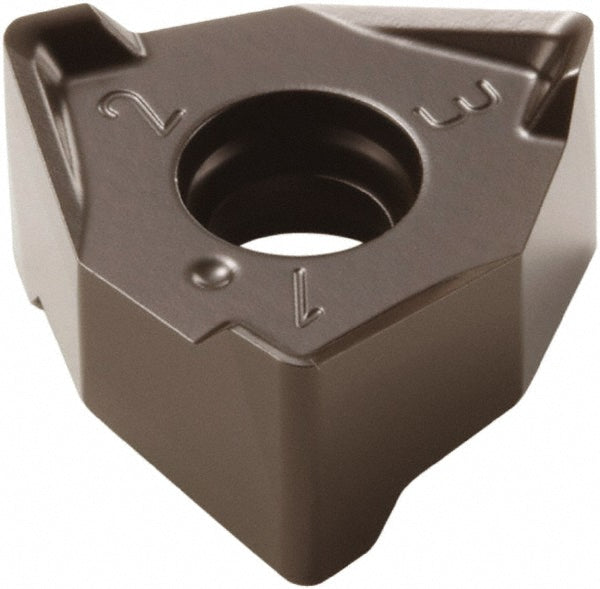

XNEX080608R-M08 Solid Carbide Insert, Grade MM4500, TiCN - Seco 02779758

Seco

XNEX080608R-M08 Solid Carbide Insert, Grade MM4500, TiCN - Seco 02779758

MFR# 02779758ISO/ANSI# XNEX080608R-M08Cat# XNEX080608R-M08Series XNEX-08

$35.02List $44.92 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTrigon
GradeMM4500
MaterialSolid Carbide
CoatingTiCN

Description

The Seco 02779758 is a XNEX080608R-M08 solid carbide indexable insert, grade MM4500, TiCN coated. Suited for stainless steel.

Specifications

Ansi codeXNEX080608R-M08
Chip breakerM08
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityR220.96-08
Cutting edge effective length0.2953
Cutting edge styleHoned
Hole diameter0.1811
Included angle degree88.28
Inscribed circle0.4913
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size08
Insert size code080608
Insert styleXNEX
Iso codeXNEX080608R-M08
Length0.2953
Length range0.0000 to 0.3200
Manufacturers catalog numberXNEX080608R-M08
Manufacturer gradeMM4500
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Maximum depth of cut0.2953
Multi use toolYes
Number of cutting edges6
Primary workpiece materialStainless Steel
RakeNegative
Rake angle24
Relief angle0
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
ShapeTrigon
Single or double sided insertDouble
StandardsISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width0.4913
