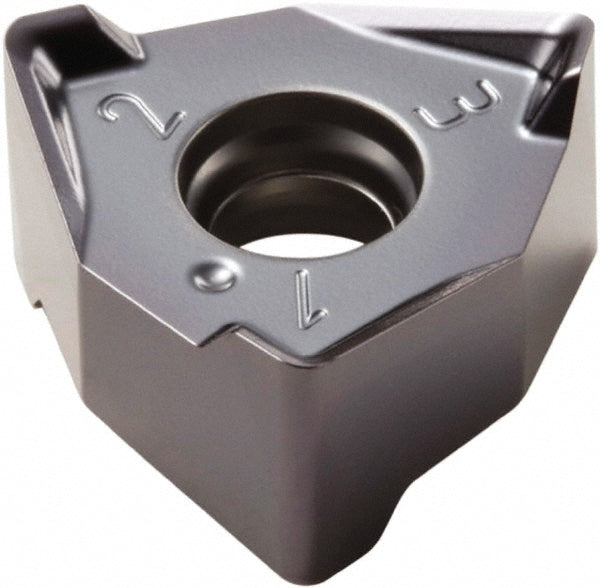

XNEX080608R-M08 Solid Carbide Insert, Grade MP3000, TiAlN - Seco 02779767

Seco

XNEX080608R-M08 Solid Carbide Insert, Grade MP3000, TiAlN - Seco 02779767

MFR# 02779767ISO/ANSI# XNEX080608R-M08Cat# XNEX080608R-M08Series XNEX-08

$35.02List $44.92 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTrigon
GradeMP3000
MaterialSolid Carbide
CoatingTiAlN

Description

The Seco 02779767 is a XNEX080608R-M08 solid carbide indexable insert, grade MP3000, TiAlN coated. Suited for hard material.

Specifications

Ansi codeXNEX080608R-M08
Chip breakerM08
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityR220.96-08
Cutting edge effective length0.2953
Cutting edge styleHoned
Hole diameter0.1811
Included angle degree88.28
Inscribed circle0.4913
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size08
Insert size code080608
Insert styleXNEX
Iso codeXNEX080608R-M08
Length0.2953
Length range0.0000 to 0.3200
Manufacturers catalog numberXNEX080608R-M08
Manufacturer gradeMP3000
Material applicationSteel; Stainless Steel; Hard Material
Material gradeMicrograin
Maximum depth of cut0.2953
Multi use toolYes
Number of cutting edges6
Primary workpiece materialHard Material
RakeNegative
Rake angle24
Relief angle0
Secondary workpiece materialSteel; Stainless Steel
ShapeTrigon
Single or double sided insertDouble
StandardsISO
Thickness0.2539
Thickness range0.2500 to 0.3500
Width0.4913
