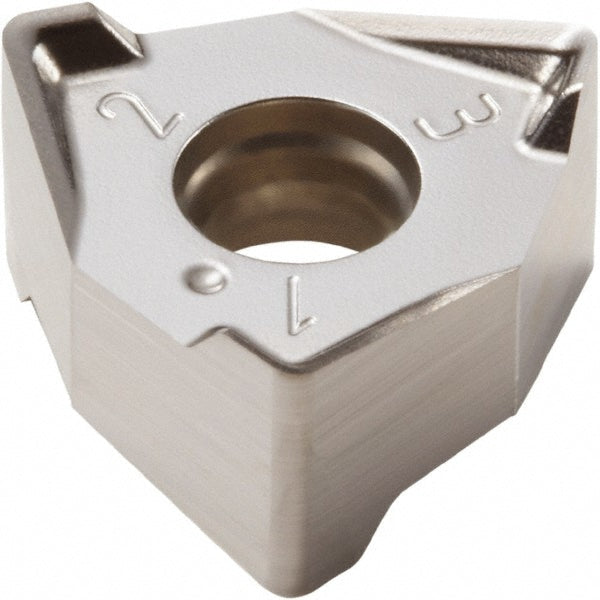

XNEX080608R-M08 Solid Carbide Insert, Grade H25 - Seco 02779770

Seco

XNEX080608R-M08 Solid Carbide Insert, Grade H25 - Seco 02779770

MFR# 02779770ISO/ANSI# XNEX080608R-M08Cat# XNEX080608R-M08Series XNEX-08

$31.83List $40.82 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTrigon
GradeH25
MaterialSolid Carbide

Description

The Seco 02779770 is a XNEX080608R-M08 solid carbide indexable insert, grade H25. Suited for non-ferrous metal.

Specifications

Ansi codeXNEX080608R-M08
Chip breakerM08
Coating processUncoated
Corner radius in1/32
Cutter series compatibilityR220.96-08
Cutting edge effective length0.2953
Cutting edge styleHoned
Hole diameter0.1811
Included angle degree88.28
Inscribed circle0.4913
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size08
Insert size code080608
Insert styleXNEX
Iso codeXNEX080608R-M08
Length0.2953
Length range0.0000 to 0.3200
Manufacturers catalog numberXNEX080608R-M08
Manufacturer gradeH25
Material applicationNon-Ferrous Metal; Superalloys & Titanium
Material gradeMicrograin
Maximum depth of cut0.2953
Multi use toolYes
Number of cutting edges6
Primary workpiece materialNon-Ferrous Metal
RakeNegative
Rake angle24
Relief angle0
Secondary workpiece materialSuperalloys & Titanium
ShapeTrigon
Single or double sided insertDouble
StandardsISO
Thickness0.2539
Thickness range0.2500 to 0.3500
Width0.4913
