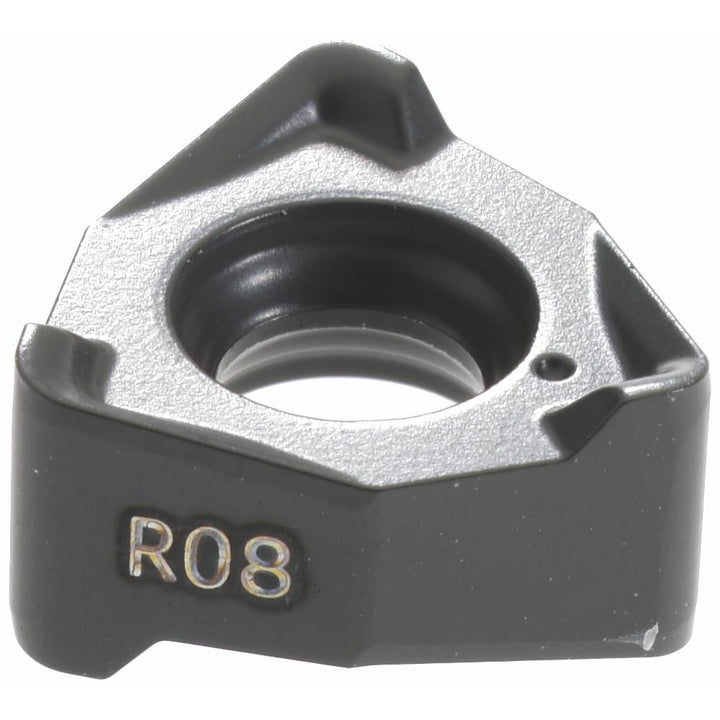

XNEX040308TR-M08 Solid Carbide Insert, Grade MK1500, TiCN - Seco 02783917
MFR# 02783917ISO/ANSI# XNEX040308TR-M08Cat# XNEX040308TR-M08Series XNEX-04
$25.52List $32.72
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeMK1500
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 02783917 is a XNEX040308TR-M08 solid carbide indexable insert, grade MK1500, TiCN coated. Suited for cast iron.
Specifications
Ansi codeXNEX040308TR-M08
Chip breakerM08
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityR217.96-04; R220.96-04
Cutting edge effective length0.1575
Cutting edge styleT-Land
Hole diameter0.1244
Included angle degree88
Inscribed circle0.2638
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size04
Insert size code040308
Insert styleXNEX
Iso codeXNEX040308TR-M08
Length0.1575
Length range0.0000 to 0.3200
Manufacturers catalog numberXNEX040308TR-M08
Manufacturer gradeMK1500
Material applicationCast Iron
Material gradeMicrograin
Maximum depth of cut0.1575
Multi use toolYes
Number of cutting edges6
Primary workpiece materialCast Iron
RakeNegative
Rake angle27
Relief angle0.00
ShapeTrigon
Single or double sided insertDouble
StandardsISO
Thickness0.1295
Thickness range0.1250 to 0.1500
Width0.2638
