Seco

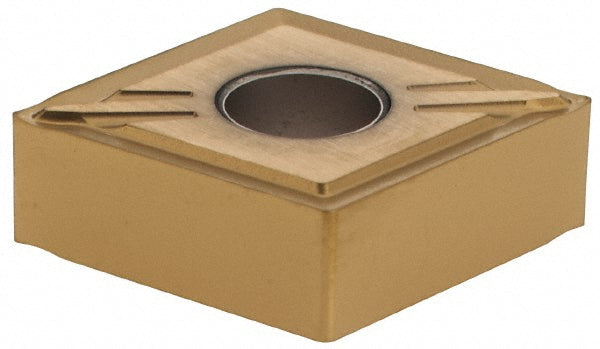

CNMG120404-FF2 Carbide Insert, Grade CP500, TiAlN - Seco 02786790
MFR# 02786790ISO/ANSI# CNMG431-FF2Series CNMG-FF2
$18.77List $24.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 02786790 is a CNMG120404-FF2 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerFF2
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2028
Included angle80degree
Industry standard numberCNMG431-FF2
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond 80
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120404-FF2
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number02786790
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.4921
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
