Seco

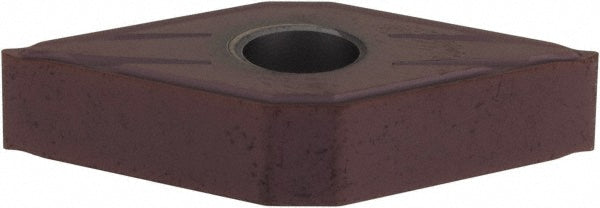

DNMG150404-FF2 Cermet Insert, Grade TP1030, TiAlSiN - Seco 02787010
MFR# 02787010ISO/ANSI# DNMG431-FF2Series DNMG-FF2
$23.65List $30.34
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeTP1030
MaterialCermet
CoatingTiAlSiN
Description
The Seco 02787010 is a DNMG150404-FF2 cermet indexable insert, grade TP1030, TiAlSiN coated. Suited for steel.
Specifications
Chip breakerFF2
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2028
Included angle55degree
Industry standard numberDNMG431-FF2
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.2204
Insert materialCermet
Insert shapeDiamond 55
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150404-FF2
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number02787010
Manufacturer gradeTP1030
Material gradeP10; P15
Maximum depth of cut0.5945
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
