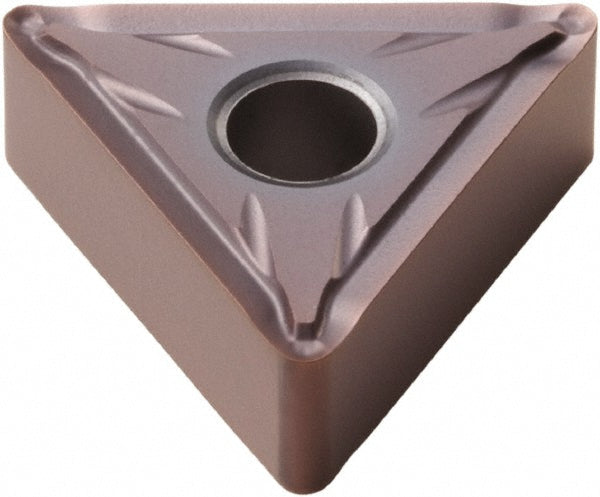

TNMG160404-FF2 Cermet Insert, Grade TP1030, TiAlSiN - Seco 02787026

MFR# 02787026ISO/ANSI# TNMG331-FF2Series TNMG-FF2

$16.43List $21.07 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTriangle
GradeTP1030
MaterialCermet
CoatingTiAlSiN

Description

The Seco 02787026 is a TNMG160404-FF2 cermet indexable insert, grade TP1030, TiAlSiN coated. Suited for steel.

Specifications

Chip breakerFF2
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle60degree
Industry standard numberTNMG331-FF2
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6496
Insert materialCermet
Insert shapeTriangle
Insert size code331
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG160404-FF2
Lead angle60degree
Length range0.6000 - 0.6500
Manufacturers catalog number02787026
Manufacturer gradeTP1030
Material gradeP10; P15
Maximum depth of cut0.6339
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width0.6496in
Wiper edgeNo
