Seco

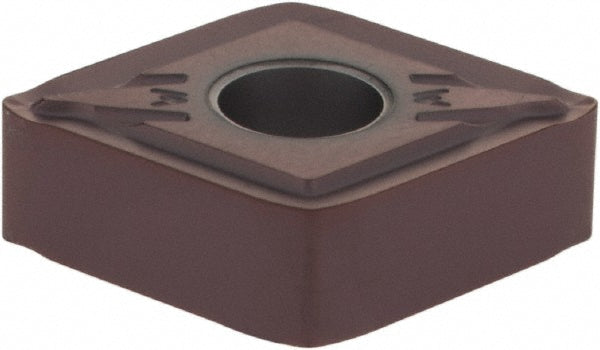

CNMG120408W-FF2 Cermet Insert, Grade TP1030, TiAlSiN - Seco 02787041
MFR# 02787041ISO/ANSI# CNMG432W-FF2Series CNMG-FF2
$21.55List $27.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeTP1030
MaterialCermet
CoatingTiAlSiN
Description
The Seco 02787041 is a CNMG120408W-FF2 cermet indexable insert, grade TP1030, TiAlSiN coated. Suited for steel.
Specifications
Chip breakerFF2
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2028
Included angle80degree
Industry standard numberCNMG432W-FF2
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5079
Insert materialCermet
Insert shapeDiamond 80
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408W-FF2
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number02787041
Manufacturer gradeTP1030
Material gradeP10; P15
Maximum depth of cut0.4764
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeYes
