Seco

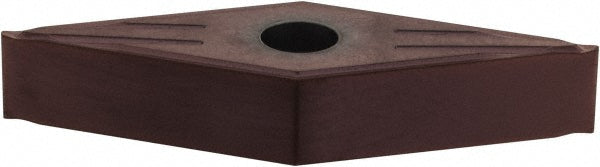

VNMG160404-FF2 Cermet Insert, Grade TP1030, TiAlSiN - Seco 02787053
MFR# 02787053ISO/ANSI# VNMG331-FF2Series VNMG-FF2
$34.27List $43.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeTP1030
MaterialCermet
CoatingTiAlSiN
Description
The Seco 02787053 is a VNMG160404-FF2 cermet indexable insert, grade TP1030, TiAlSiN coated. Suited for steel.
Specifications
Chip breakerFF2
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle35degree
Industry standard numberVNMG331-FF2
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.3070
Insert materialCermet
Insert shapeDiamond 35
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160404-FF2
Lead angle35degree
Length range0.7000 - 10.0000
Manufacturers catalog number02787053
Manufacturer gradeTP1030
Material gradeP10; P15
Maximum depth of cut0.6142
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
