Seco

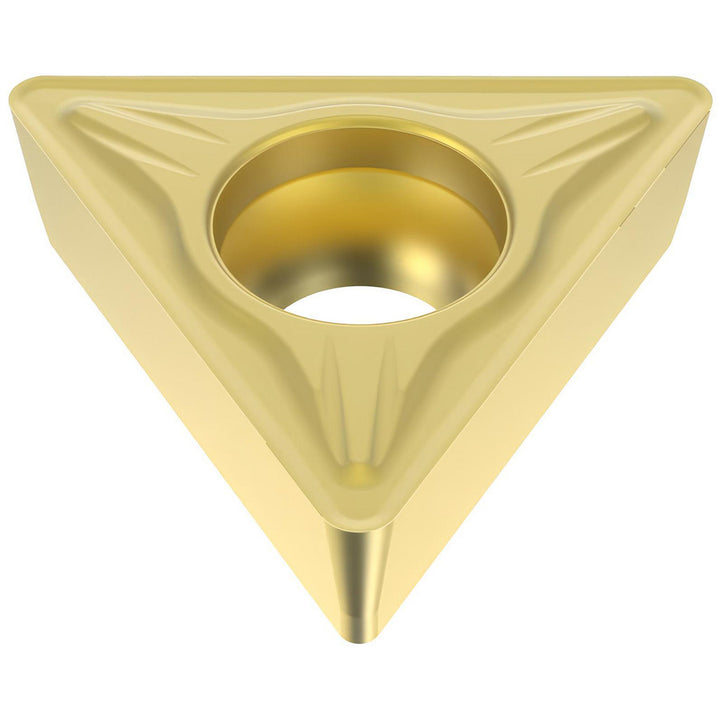

TCMT16T308-M5 Carbide Insert, Grade TP40, TiC - Seco 02789090
MFR# 02789090ISO/ANSI# TCMT32.52-M5Series TCMT-M5
$16.25List $20.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeTP40
MaterialCarbide
CoatingTiC
Description
The Seco 02789090 is a TCMT16T308-M5 carbide indexable insert, grade TP40, TiC coated. Suited for steel, stainless steel.
Specifications
Chip breakerM5
Clearance codeC
Coating finishTiC
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1772
Included angle60degree
Industry standard numberTCMT32.52-M5
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6496
Insert materialCarbide
Insert shapeTriangle
Insert size code32.52
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT16T308-M5
Lead angle60degree
Length range0.6000 - 0.6500
Manufacturers catalog number02789090
Manufacturer gradeTP40
Material gradeP40; M35; M40
Maximum depth of cut0.5709
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width0.6496in
Wiper edgeNo
