Seco

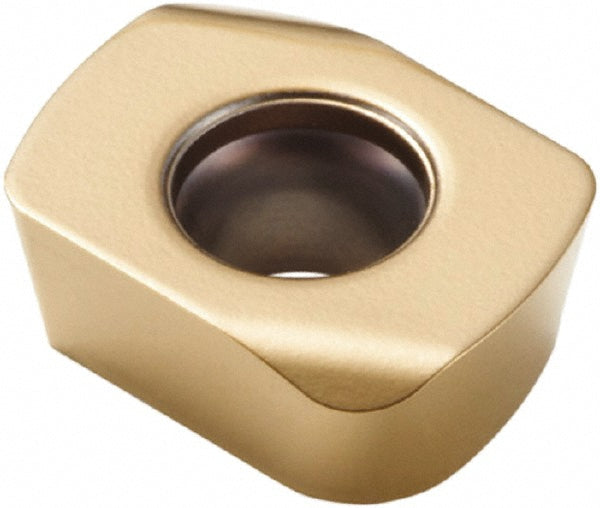

LPHW060310TR-D06 Solid Carbide Insert, Grade MH1000, TiAlN - Seco 02789566
MFR# 02789566ISO/ANSI# LPHW060310TR-D06Cat# LPHW060310TR-D06Series LPHW-06
$15.91List $20.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeRectangle
GradeMH1000
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02789566 is a LPHW060310TR-D06 solid carbide indexable insert, grade MH1000, TiAlN coated. Suited for hard material.
Specifications
Ansi codeLPHW060310TR-D06
Chip breakerD06
Coating finishTiAlN
Coating processPVD
Convex radius0.3150
Corner radius0.0394
Cutter series compatibilityR217.21-LP06; R220.21-LP06
Cutting edge effective length0.3343
Cutting edge styleT-Land
Hole diameter0.1142
Included angle degree90
Inscribed circle in1/4
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size06
Insert size code060310
Insert styleLPHW
Iso codeLPHW060310TR-D06
Length0.3343
Length range0.3200 to 0.4000
Manufacturers catalog numberLPHW060310TR-D06
Manufacturer gradeMH1000
Material applicationHard Material; Cast Iron
Material gradeUltra Fine Grain
Maximum depth of cut0.3343
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakeNeutral
Rake angle0
Relief angle11
Secondary workpiece materialCast Iron
ShapeRectangle
Single or double sided insertSingle
StandardsISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in1/4
