Seco

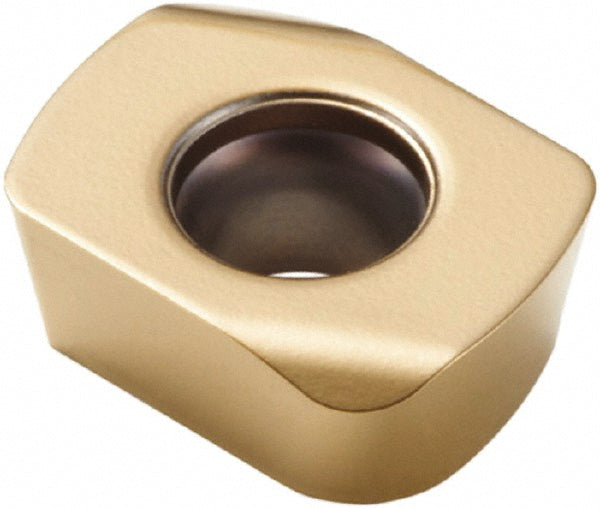

LPHW060310TR-D06 Solid Carbide Insert, Grade MP3000, TiAlN - Seco 02789568
MFR# 02789568ISO/ANSI# LPHW060310TR-D06Cat# LPHW060310TR-D06Series LPHW-06
$16.84List $21.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeRectangle
GradeMP3000
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02789568 is a LPHW060310TR-D06 solid carbide indexable insert, grade MP3000, TiAlN coated. Suited for hard material.
Specifications
Ansi codeLPHW060310TR-D06
Chip breakerD06
Coating finishTiAlN
Coating processPVD
Convex radius0.3150
Corner radius0.0394
Cutter series compatibilityR217.21-LP06; R220.21-LP06
Cutting edge effective length0.3343
Cutting edge styleT-Land
Hole diameter0.1142
Included angle degree90
Inscribed circle in1/4
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size06
Insert size code060310
Insert styleLPHW
Iso codeLPHW060310TR-D06
Length0.3343
Length range0.3200 to 0.4000
Manufacturers catalog numberLPHW060310TR-D06
Manufacturer gradeMP3000
Material applicationSteel; Stainless Steel; Hard Material
Material gradeMicrograin
Maximum depth of cut0.3343
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakeNeutral
Rake angle0
Relief angle11
Secondary workpiece materialSteel; Stainless Steel
ShapeRectangle
Single or double sided insertSingle
StandardsISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in1/4
