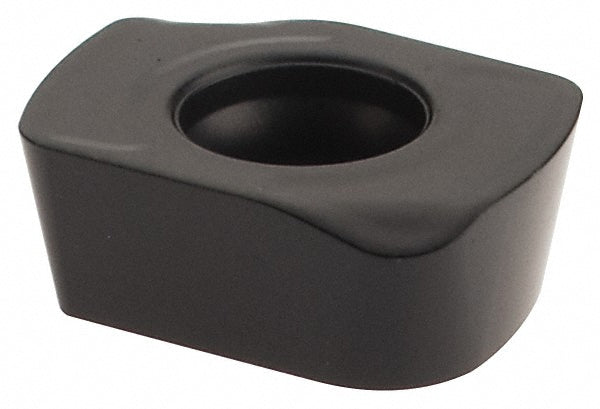

LPHT060310TR-M06 Solid Carbide Insert, Grade MS2500, TiCN - Seco 02789595
MFR# 02789595ISO/ANSI# LPHT060310TR-M06Cat# LPHT060310TR-M06Series LPHT-06
$20.39List $25.70
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeRectangle
GradeMS2500
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 02789595 is a LPHT060310TR-M06 solid carbide indexable insert, grade MS2500, TiCN coated. Suited for superalloys & titanium.
Specifications
Ansi codeLPHT060310TR-M06
Chip breakerM06
Coating finishTiCN
Coating processCVD
Convex radius0.3150
Corner radius0.0394
Cutter series compatibilityR217.21-LP06; R220.21-LP06
Cutting edge effective length0.3343
Cutting edge styleT-Land
Hole diameter0.1142
Included angle degree90
Inscribed circle in1/4
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size06
Insert size code060310
Insert styleLPHT
Iso codeLPHT060310TR-M06
Length0.3343
Length range0.3200 to 0.4000
Manufacturers catalog numberLPHT060310TR-M06
Manufacturer gradeMS2500
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMedium Grain
Maximum depth of cut0.3343
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSuperalloys & Titanium
RakePositive
Rake angle11
Relief angle11
Secondary workpiece materialSteel; Stainless Steel
ShapeRectangle
Single or double sided insertSingle
StandardsISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in1/4
