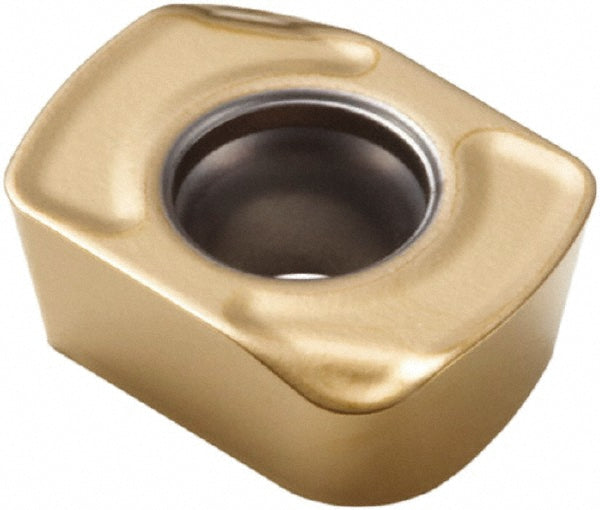

LPHT060310TR-M06 Solid Carbide Insert, Grade F40M, TiAlN - Seco 02789605
MFR# 02789605ISO/ANSI# LPHT060310TR-M06Cat# LPHT060310TR-M06Series LPHT-06
$16.84List $21.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeRectangle
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02789605 is a LPHT060310TR-M06 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeLPHT060310TR-M06
Chip breakerM06
Coating finishTiAlN
Coating processPVD
Convex radius0.3150
Corner radius0.0394
Cutter series compatibilityR217.21-LP06; R220.21-LP06
Cutting edge effective length0.3343
Cutting edge styleT-Land
Hole diameter0.1142
Included angle degree90
Inscribed circle in1/4
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size06
Insert size code060310
Insert styleLPHT
Iso codeLPHT060310TR-M06
Length0.3343
Length range0.3200 to 0.4000
Manufacturers catalog numberLPHT060310TR-M06
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.3343
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle11
Relief angle11
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeRectangle
Single or double sided insertSingle
StandardsISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in1/4
