Seco

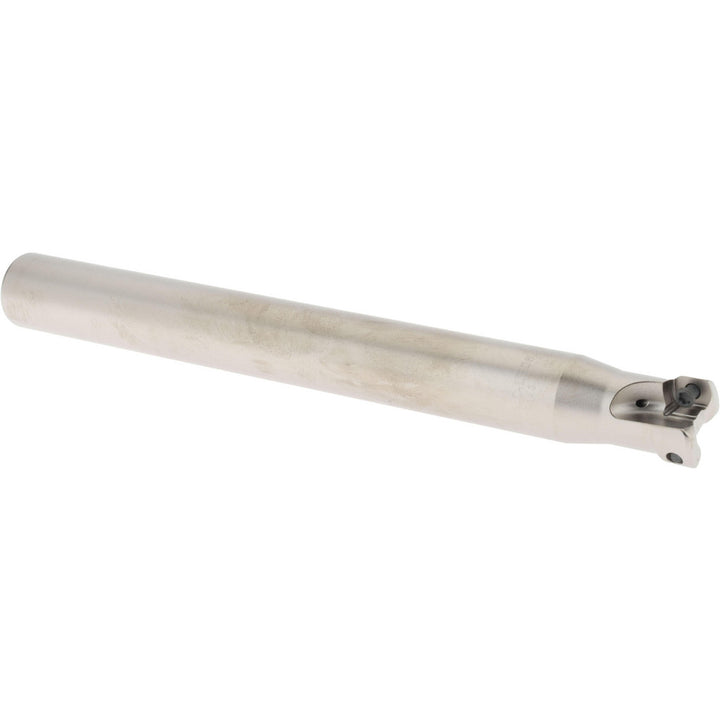

Indexable End Mills - Seco 02789777
MFR# 02789777
$452.47List $496.80
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 02789777 indexable end mills.
Specifications
Compatible insert styleLP06
Coolant throughYes
Cutting diameter0.6250
Functional length1.5750
Insert holding methodScrew
Maximum cutting diameter in1-1/2
Maximum depth of cut0.0300
Maximum ramping angle0.90
Maximum rpm39000
Minimum cutting diameter0.2900
Number of cutter inserts2
Overall length6.0000
Shank diameter in5/8
Shank typeCylindrical
Toolholder styleR217.21
Tool applicationMilling
Weldon flatNo
