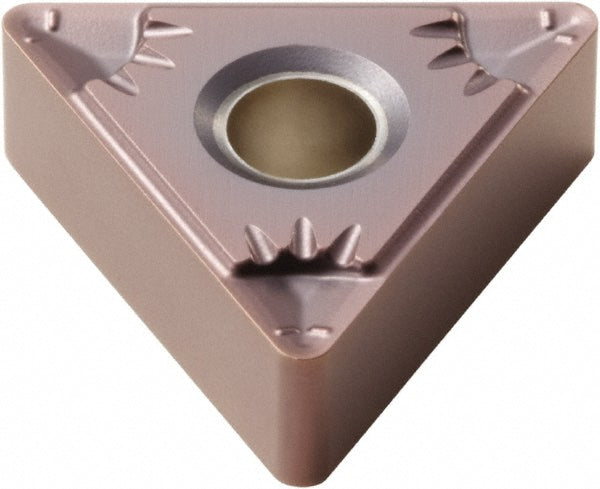

TNMG160404-MF5 Carbide Insert, Grade TH1000, TiAlSiN - Seco 02793483

Seco

TNMG160404-MF5 Carbide Insert, Grade TH1000, TiAlSiN - Seco 02793483

MFR# 02793483ISO/ANSI# TNMG331-MF5Series TNMG-MF5

$17.33List $22.23 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTriangle
GradeTH1000
MaterialCarbide
CoatingTiAlSiN

Description

The Seco 02793483 is a TNMG160404-MF5 carbide indexable insert, grade TH1000, TiAlSiN coated. Suited for superalloys & titanium, hard material.

Specifications

Chip breakerMF5
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle60degree
Industry standard numberTNMG331-MF5
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6496
Insert materialCarbide
Insert shapeTriangle
Insert size code331
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG160404-MF5
Lead angle60degree
Length range0.6000 - 0.6500
Manufacturers catalog number02793483
Manufacturer gradeTH1000
Material gradeS05; H05
Maximum depth of cut0.1063
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSuperalloys & Titanium; Hard Material
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.6496in
Wiper edgeNo
