Seco

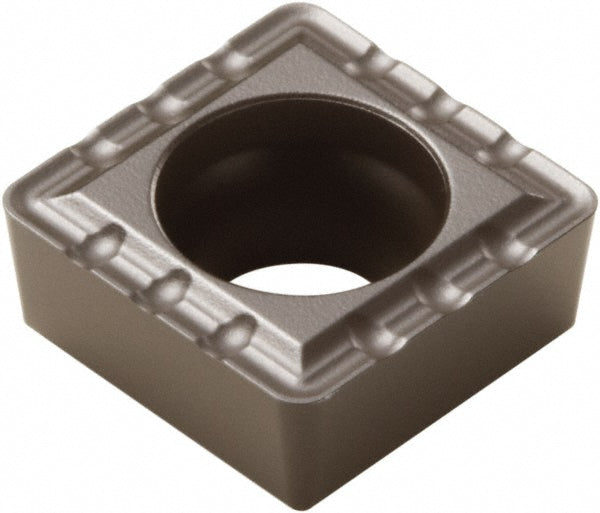

0.3750" IC Solid Carbide Insert, Grade DP3000, Coated - Seco 02807364
MFR# 02807364Series Perfomax
$30.93List $38.98
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeDP3000
MaterialSolid Carbide
CoatingCoated
Description
The Seco 02807364 is a solid carbide indexable insert, grade DP3000, Coated coated. Suited for universal.
Specifications
ChipbreakerP1
Coating finishCoated
Coating processDuratomic
Corner radius0.0310
Included angle degree90
Inscribed circle0.3750
Insert materialSolid Carbide
Insert size09T308
Insert size code09
Insert styleSCGX
Length0.3750
Manufacturer gradeDP3000
Primary workpiece materialUniversal
Relief angle7
ShapeSquare
Thickness0.1560
Width0.3750
