Seco

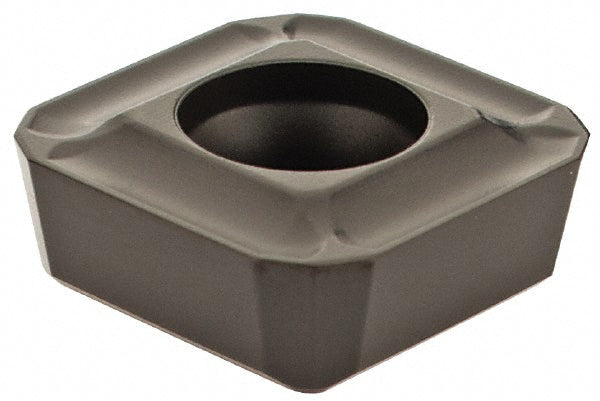

0.4530" IC Solid Carbide Insert, Grade DP3000, Coated - Seco 02807371
MFR# 02807371Series Perfomax
$28.54List $36.61
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeDP3000
MaterialSolid Carbide
CoatingCoated
Description
The Seco 02807371 is a solid carbide indexable insert, grade DP3000, Coated coated. Suited for universal.
Specifications
ChipbreakerC1
Coating finishCoated
Coating processDuratomic
Cutting directionRight Hand
Included angle degree90
Inscribed circle0.4530
Insert materialSolid Carbide
Insert size11T3
Insert size code11
Insert styleSPGX
Length0.4530
Manufacturer gradeDP3000
Primary workpiece materialUniversal
Relief angle11
ShapeSquare
Thickness0.1560
Width0.4530
