Seco

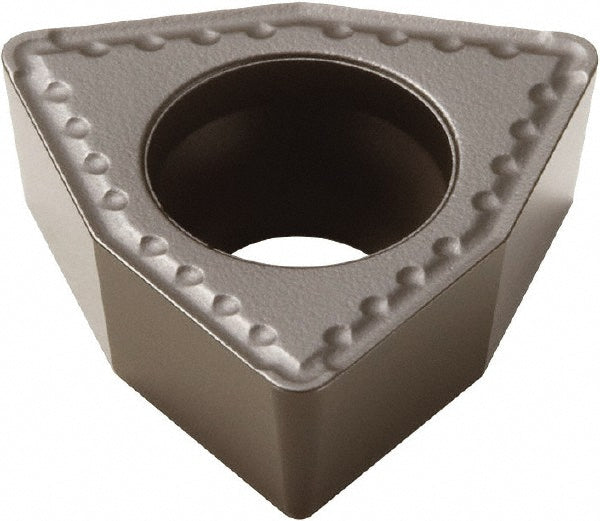

0.3750" IC Solid Carbide Insert, Grade DP3000, Coated - Seco 02807377
MFR# 02807377
$23.07List $29.59
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeDP3000
MaterialSolid Carbide
CoatingCoated
Description
The Seco 02807377 is a solid carbide indexable insert, grade DP3000, Coated coated. Suited for universal.
Specifications
Chipbreaker85
Coating finishCoated
Coating processDuratomic
Corner radius0.0310
Included angle degree80
Inscribed circle0.3750
Insert materialSolid Carbide
Insert size0.375
Insert size code06
Insert styleWCMX
Length0.3750
Manufacturer gradeDP3000
Primary workpiece materialUniversal
Relief angle7
ShapeTrigon
Thickness0.1560
Width0.3750
