Seco

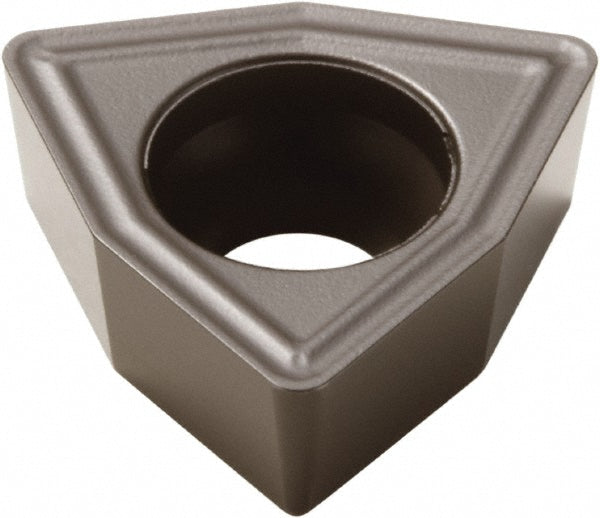

0.2500" IC Solid Carbide Insert, Grade DP3000, Coated - Seco 02807380
MFR# 02807380
$19.46List $24.52
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeDP3000
MaterialSolid Carbide
CoatingCoated
Description
The Seco 02807380 is a solid carbide indexable insert, grade DP3000, Coated coated. Suited for universal.
Specifications
Chipbreaker86
Coating finishCoated
Coating processDuratomic
Corner radius0.0310
Included angle degree80
Inscribed circle0.2500
Insert materialSolid Carbide
Insert size0.250
Insert size code04
Insert styleWCMX
Length0.2500
Manufacturer gradeDP3000
Primary workpiece materialUniversal
Relief angle7
ShapeTrigon
Thickness0.0940
Width0.2500
