Seco
0.3130" IC Solid Carbide Insert, Grade DP3000, Coated - Seco 02807381
MFR# 02807381
$25.87List $32.61
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeDP3000
MaterialSolid Carbide
CoatingCoated
Description

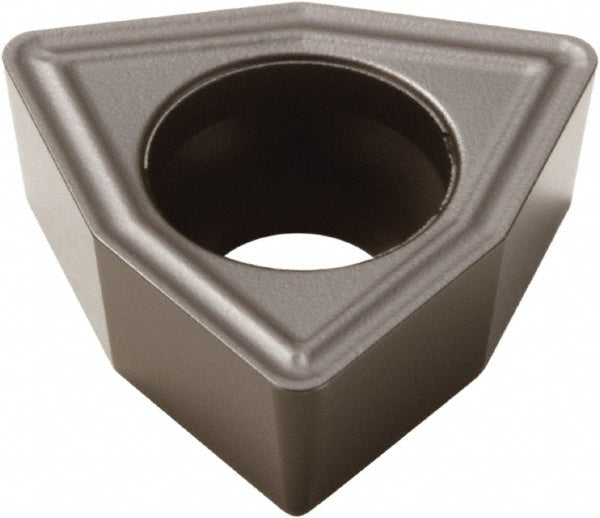

The Seco 02807381 is a solid carbide indexable insert, grade DP3000, Coated coated. Suited for universal.
Specifications
Chipbreaker86
Coating finishCoated
Coating processDuratomic
Corner radius0.0310
Included angle degree80
Inscribed circle0.3130
Insert materialSolid Carbide
Insert size0.313
Insert size code05
Insert styleWCMX
Length0.3130
Manufacturer gradeDP3000
Primary workpiece materialUniversal
Relief angle7
ShapeTrigon
Thickness0.1250
Width0.3130
