Seco

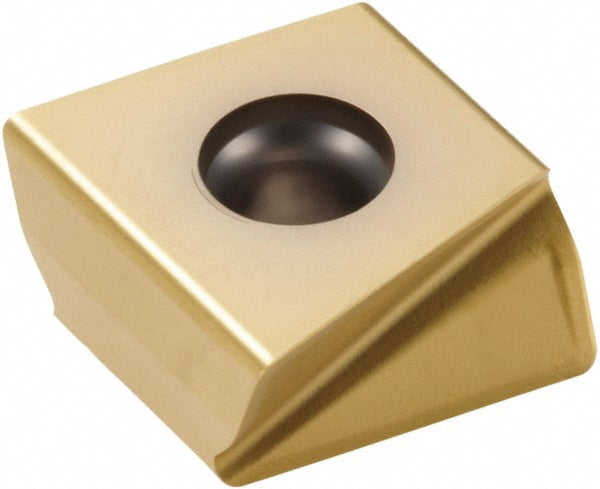

XNHQ140724TN4-M11 Solid Carbide Insert, Grade F40M, TiAlN - Seco 02808733
MFR# 02808733ISO/ANSI# XNHQ140724TN4-M11Cat# XNHQ140724TN4-M11Series XNHQ-14
$50.03List $62.97
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeButterfly
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02808733 is a XNHQ140724TN4-M11 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeXNHQ140724TN4-M11
Chip breakerM11
Coating finishTiAlN
Coating processPVD
Corner radius0.0945
Cutter series compatibility335.25
Cutting edge effective length0.5512
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.2953
Inscribed circle range0.2500 to 0.3000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size14
Insert size code140724
Insert styleXNHQ
Iso codeXNHQ140724TN4-M11
Length0.5748
Length range0.5000 to 0.6000
Manufacturers catalog numberXNHQ140724TN4-M11
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.5157
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakeNegative
Rake angle16
Relief angle0
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeRectangle
Single or double sided insertDouble
StandardsISO
Thickness0.2953
Thickness range0.2500 to 0.3500
Width0.2953
