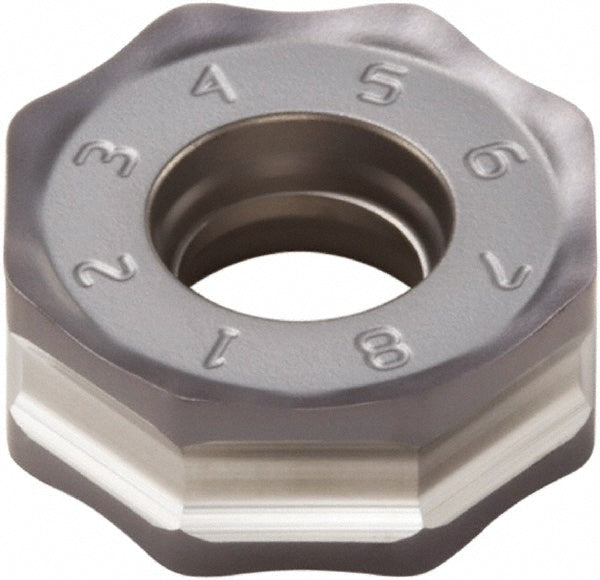

ONMU050410ANTN-ME10 Solid Carbide Insert, Grade F40M, TiAlN - Seco 02809856
MFR# 02809856ISO/ANSI# ONMU050410ANTN-ME10Cat# ONMU050410ANTN-ME10Series ONMU-05
$33.76List $43.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeOctagon
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02809856 is a ONMU050410ANTN-ME10 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeONMU050410ANTN-ME10
Chip breakerME10
Coating finishTiAlN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityR217.48-05; R220.48-05
Cutting edge effective length0.1535
Cutting edge styleT-Land
Hole diameter0.1969
Included angle degree135
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size05
Insert size code050410
Insert styleONMU
Iso codeONMU050410ANTN-ME10
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberONMU050410ANTN-ME10
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.1535
Multi use toolYes
Number of cutting edges16
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakeNegative
Rake angle20
Relief angle0
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeOctagon
Single or double sided insertDouble
StandardsISO
Thickness0.1772
Thickness range0.1750 to 0.1850
Width0.4724
