Seco

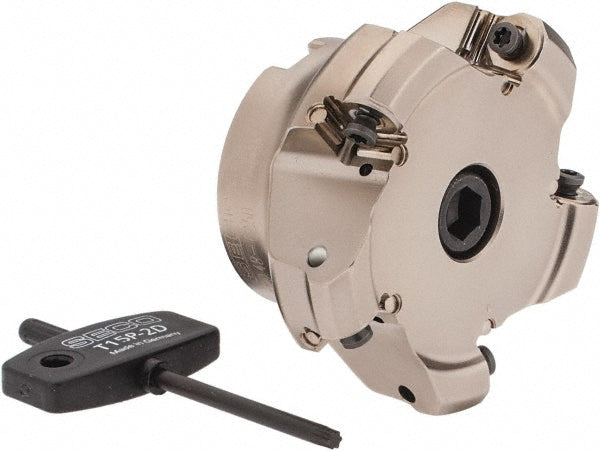

Indexable Milling Cutters - Seco 02810098
MFR# 02810098Cat# R220.48-02.50-05-05SASeries Double Octo 05
$1,087.75List $1,155.60
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description
The Seco 02810098 indexable milling cutters. Series Double Octo 05.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeON.U05
Complete insert compatibilityONEU 05; ONMU 05
Coolant throughYes
Counterbore diameter0.3200
Cutter styleR220.48
Cutting directionRight Hand
Hub diameter1.8500
Insert holding methodScrew
Keyway width0.3200
Manufacturers catalog numberR220.48-02.50-05-05SA
Maximum body diameter2.8100
Maximum cutting diameter2.8100
Maximum depth of cut0.1180
Maximum rpm12800
Minimum cutting diameter2.4800
Number of cutter inserts5
Number of flutes5
Overall height1.5750
Pitch typeNormal
RakeNegative
Rake angle-8
Toolholder materialSteel
Tool applicationFacing
