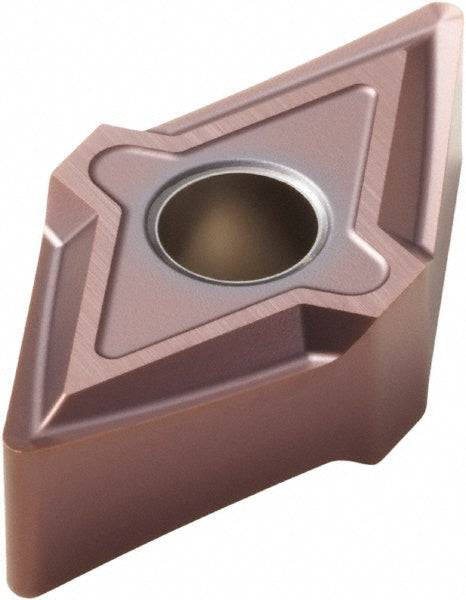

DNMG150408-MF1 Carbide Insert, Grade TH1000, TiAlSiN - Seco 02812486

Seco

DNMG150408-MF1 Carbide Insert, Grade TH1000, TiAlSiN - Seco 02812486

MFR# 02812486ISO/ANSI# DNMP432-MF1Series DNMP-MF1

$24.84List $31.86 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeTH1000
MaterialCarbide
CoatingTiAlSiN

Description

The Seco 02812486 is a DNMG150408-MF1 carbide indexable insert, grade TH1000, TiAlSiN coated. Suited for superalloys & titanium, hard material.

Specifications

Chip breakerMF1
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2028
Included angle55degree
Industry standard numberDNMP432-MF1
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.2204
Insert materialCarbide
Insert shapeDiamond 55
Insert size code432
Insert styleDNMP
Insert thickness in3/16
Iso codeDNMG150408-MF1
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number02812486
Manufacturer gradeTH1000
Material gradeS05; H05
Maximum depth of cut0.5787
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium; Hard Material
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
