Seco

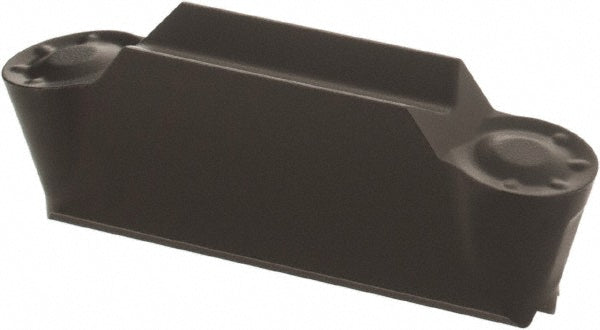

Solid Carbide Insert, Grade TGK1500, Coated - Seco 02815035
MFR# 02815035Cat# LCMF1604M0-0400-MPSeries MDT
$42.77List $54.86
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTGK1500
MaterialSolid Carbide
CoatingCoated
Description
The Seco 02815035 is a solid carbide indexable insert, grade TGK1500, Coated coated. Suited for cast iron.
Specifications
ChipbreakerMP
Coating finishCoated
Coating processCVD
Corner radius0.0790
Cutting height0.1770
Insert handNeutral
Insert length0.6790
Insert materialSolid Carbide
Insert size code1604M0
Insert styleLCMF
Manufacturers catalog numberLCMF1604M0-0400-MP
Manufacturer gradeTGK1500
Maximum cutting width0.1570
Primary workpiece materialCast Iron
Relief angle0
ShapeDog Bone
