Seco

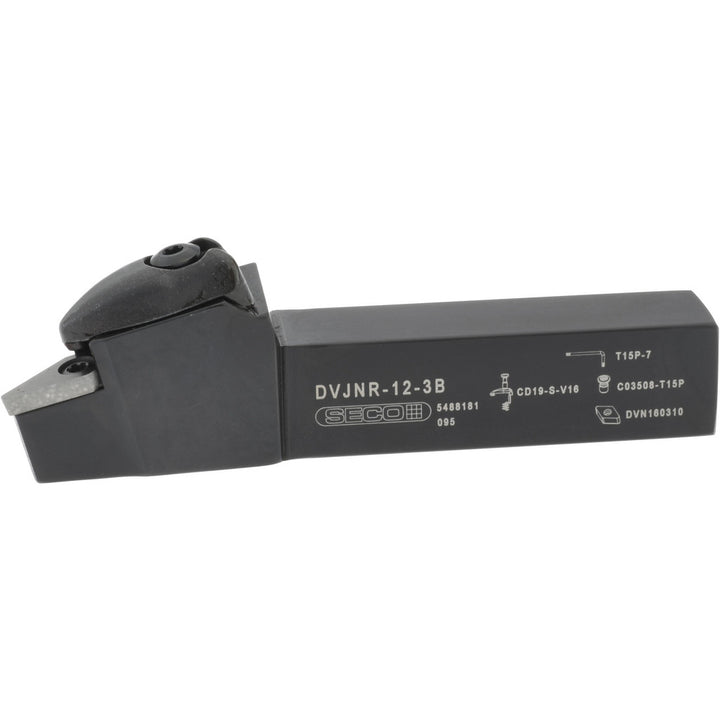

Indexable Turning & Profiling - Seco 02822861
MFR# 02822861Series Dual Clamp
$178.53List $204.12
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 02822861 indexable turning & profiling. Suited for universal. Series Dual Clamp.
Specifications
Back of bar to cutting edge1.0000
Compatible insert size codeVN33
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length1.6100
Insert compatibilityVNMG 332
Insert holding methodClamp
Insert inscribed circle in3/8
Multi use toolNo
Overall length4.5000
Primary workpiece materialUniversal
RakeNegative
Rake angle-4.5
Shank height0.7500
Shank width in3/4
Toolholder styleDVJN
