Seco

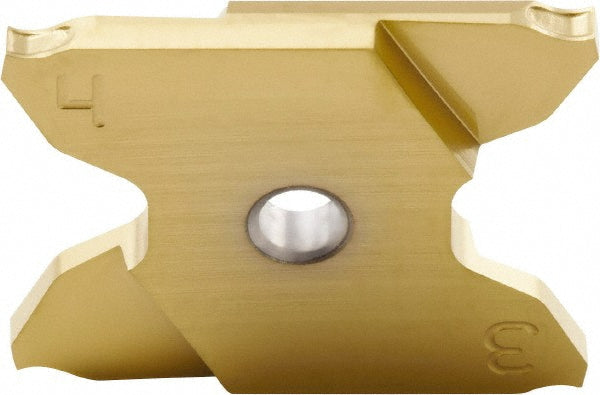

Carbide Insert, Grade CP500, TiAlN - Seco 02822994
MFR# 02822994Series X4
$74.77List $95.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 02822994 is a carbide indexable insert, grade CP500, TiAlN coated. Suited for universal.
Specifications
Chip breakerMC
Coating finishTiAlN
Coating processPVD
Corner radius0.0040
Cutting height0.8000
Cutting width0.059
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size2503010
Insert size code25030100150
Insert styleX4GK
Lead angle0
Manufacturer gradeCP500
Material gradeMicrograin
Maximum depth of cut0.2560
Maximum depth of cut range0.2000 to 0.3000
Multi use toolYes
Overall length1.002
Overall width0.118
Primary workpiece materialUniversal
RakeNeutral
Rake angle6
StandardsISO
