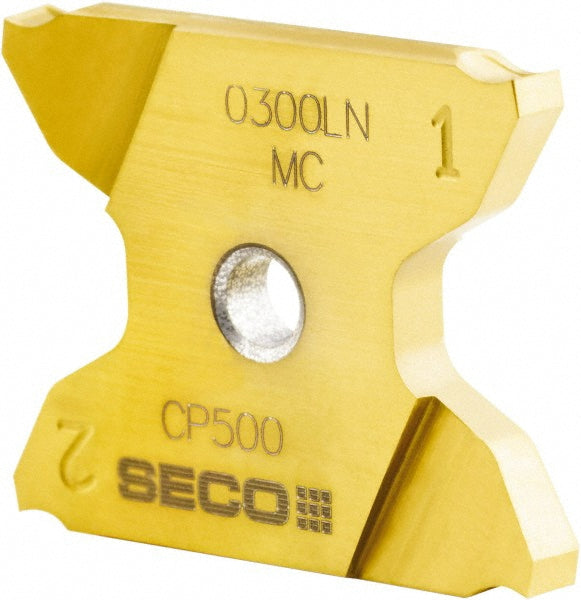

Solid Carbide Insert, Grade CP500, TiAlN - Seco 02823038
MFR# 02823038Series X4
$74.77List $95.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeCP500
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02823038 is a solid carbide indexable insert, grade CP500, TiAlN coated. Suited for universal.
Specifications
Chip breakerMC
Coating finishTiAlN
Coating processPVD
Corner radius0.0035
Cutting height0.8000
Cutting width0.0310
Full radiusNo
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size2503009-A0031RN
Insert size code25030090079
Insert styleX4GK
Lead angle0
Manufacturer gradeCP500
Material gradeMicrograin
Maximum depth of cut0.1690
Maximum depth of cut range0.1500 to 0.2000
Msc manufacturer numberX4GK 2503009-A0031R/LN
Multi use toolYes
Overall length1.0010
Primary workpiece materialUniversal
RakePositive
Rake angle0.00
Single or double endDouble
StandardsISO
