Seco

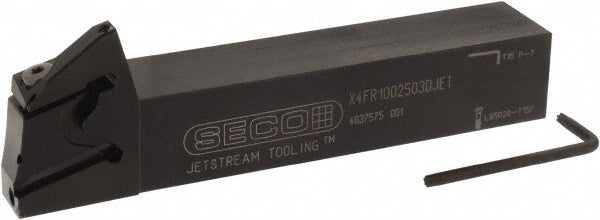

Indexable Grooving - Seco 02823301
MFR# 02823301Series X4
$405.61List $430.91
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 02823301 indexable grooving. Suited for cast iron. Series X4.
Specifications
Back of bar to cutting edge1.1020
Compatible insert size codeX42503R
Coolant throughYes
Cutting directionRight Hand
Hand of holderRight Hand
Head height1.4400
Head length1.4410
Insert compatibilityX4GK25..R
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.2560
Maximum groove width0.1180
Minimum groove width0.0310
Msc manufacturer numberX4FR/L 1002503DJET
Multi use toolYes
Overall length in6
Primary workpiece materialCast Iron
Shank height in1
Shank length (mm)6.00
Shank width diameter1.0000
Toolholder materialSteel
Toolholder styleX4 Jet
Toolholder typeNon-Face Grooving
