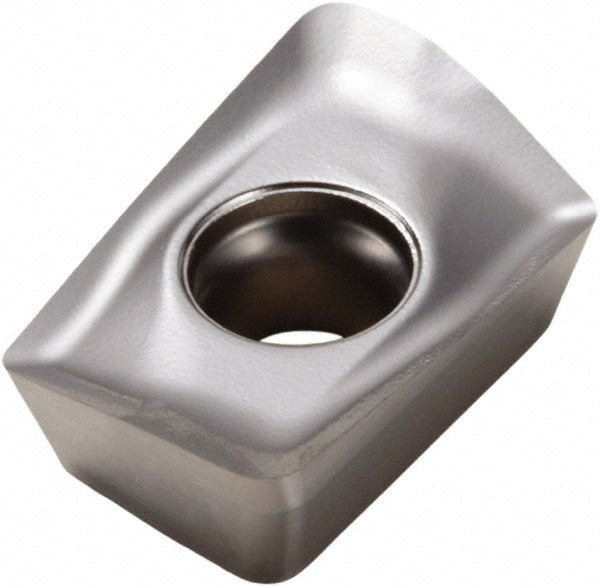

XOEX10T304FR-E05 Solid Carbide Insert, Grade H15 - Seco 02823841

Seco

XOEX10T304FR-E05 Solid Carbide Insert, Grade H15 - Seco 02823841

MFR# 02823841ISO/ANSI# XOEX10T304FR-E05Cat# XOEX10T304FR-E05Series XOEX-10

$26.52List $34.02 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeH15
MaterialSolid Carbide

Description

The Seco 02823841 is a XOEX10T304FR-E05 solid carbide indexable insert, grade H15. Suited for non-ferrous metal.

Specifications

Ansi codeXOEX10T304FR-E05
Chip breakerE05
Coating processUncoated
Corner radius in1/64
Cutter series compatibilityR217.69-10; R220.69-10
Cutting edge effective length0.3819
Cutting edge styleSharp
Hole diameter0.1181
Included angle degree90
Inscribed circle0.2717
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code10T304
Insert styleXOEX
Iso codeXOEX10T304FR-E05
Length0.3819
Length range0.3200 to 0.4000
Manufacturers catalog numberXOEX10T304FR-E05
Manufacturer gradeH15
Material applicationNon-Ferrous Metal
Material gradeMicrograin
Maximum depth of cut0.3819
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle21.6
Relief angle15
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.1496
Thickness range0.1250 to 0.1500
Width0.2717
