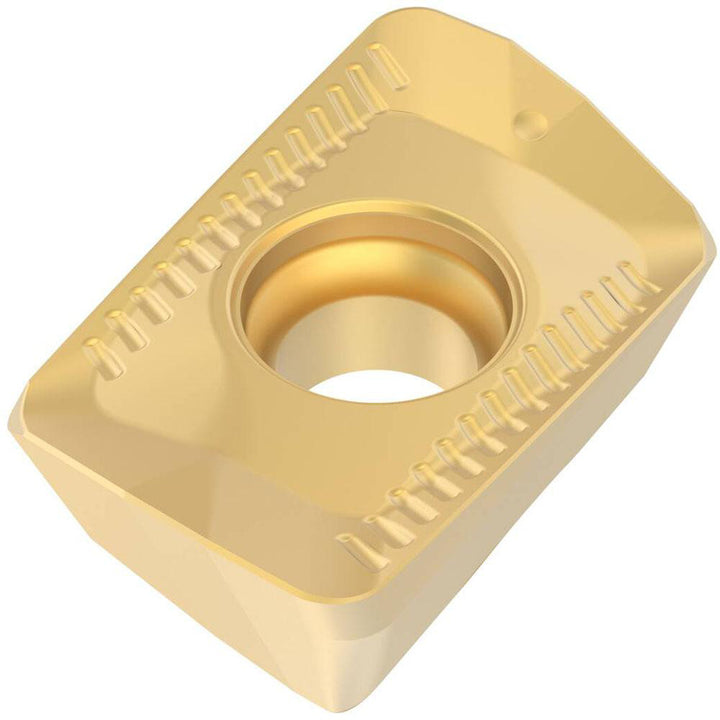

XOMX10T331TR-ME07 Solid Carbide Insert, Grade F40M, TiAlN - Seco 02823871

Seco

XOMX10T331TR-ME07 Solid Carbide Insert, Grade F40M, TiAlN - Seco 02823871

MFR# 02823871ISO/ANSI# XOMX10T331TR-ME07Cat# XOMX10T331TR-ME07Series XOMX-10

$23.07List $29.60 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeF40M
MaterialSolid Carbide
CoatingTiAlN

Description

The Seco 02823871 is a XOMX10T331TR-ME07 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.

Specifications

Ansi codeXOMX10T331TR-ME07
Chip breakerME07
Coating finishTiAlN
Coating processPVD
Corner radius0.1220
Cutter series compatibilityR217.69-10; R220.69-10
Cutting edge effective length0.3661
Cutting edge styleT-Land
Hole diameter0.1181
Included angle degree90
Inscribed circle0.2717
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code10T331
Insert styleXOMX
Iso codeXOMX10T331TR-ME07
Length0.3661
Length range0.3200 to 0.4000
Manufacturers catalog numberXOMX10T331TR-ME07
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.3661
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle20.4
Relief angle15
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.1508
Thickness range0.1500 to 0.1750
Width0.2717
