Seco

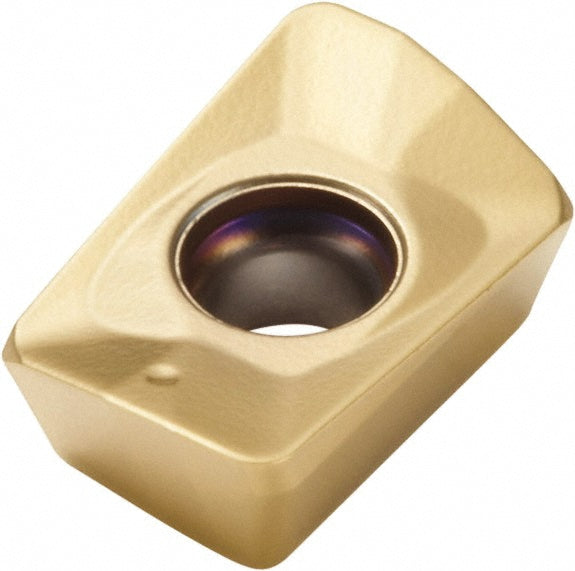

XOEX10T331R-M06 Solid Carbide Insert, Grade F40M, TiAlN - Seco 02823936
MFR# 02823936ISO/ANSI# XOEX10T331R-M06Cat# XOEX10T331R-M06Series XOEX-10
$28.97List $37.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02823936 is a XOEX10T331R-M06 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeXOEX10T331R-M06
Chip breakerM06
Coating finishTiAlN
Coating processPVD
Corner radius0.1220
Cutter series compatibilityR217.69-10; R220.69-10
Cutting edge effective length0.3819
Cutting edge styleHoned
Hole diameter0.1181
Included angle degree90
Inscribed circle0.2717
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code10T331
Insert styleXOEX
Iso codeXOEX10T331R-M06
Length0.3819
Length range0.3200 to 0.4000
Manufacturers catalog numberXOEX10T331R-M06
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.3819
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle17.3
Relief angle15
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.1496
Thickness range0.1250 to 0.1500
Width0.2717
