Seco

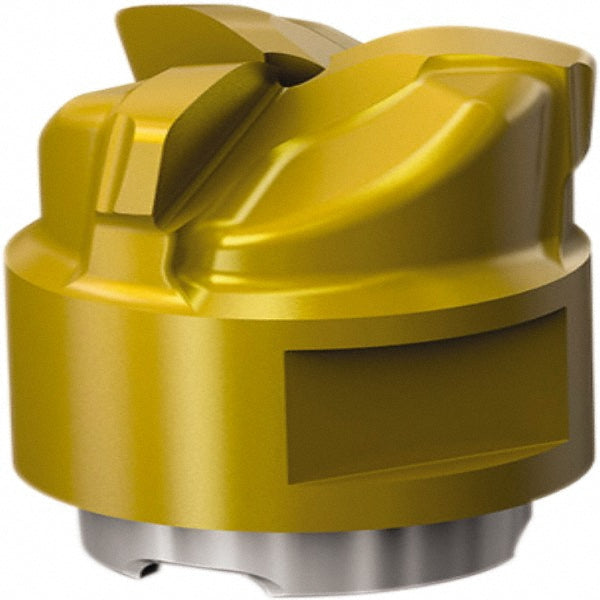

Carbide Insert, Grade MP3000, TiAlN - Seco 02825081
MFR# 02825081Series MP10
$117.70
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
GradeMP3000
CoatingTiAlN
Description
The Seco 02825081 is a carbide indexable insert, grade MP3000, TiAlN coated. Suited for steel, stainless steel, hard material.
Specifications
Chamfer angle0degree
ChipbreakerMD08
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Corner radius0.0240
Cutting diameter0.1790
Cutting width0.3750in
Functional length0.4330
Included angle degree90
Insert handRight Hand
Insert size00.375-.024-HFZ3
Lead angle90
Length of cut0.0240in
Manufacturers catalog number02825081
Manufacturer gradeMP3000
Material gradeP20; P30; M10; H10; H20; H30
Maximum depth of cut0.0240
Milling tip full descriptionMP10-00.375-.024-HFZ3-MD08
Milling tip styleMP10
Milling tip typeSlotting
Number of flutes3
Overall length0.4330in
Primary workpiece materialSteel; Stainless Steel; Hard Material
StandardsANSI
Tool materialCarbide
