Seco

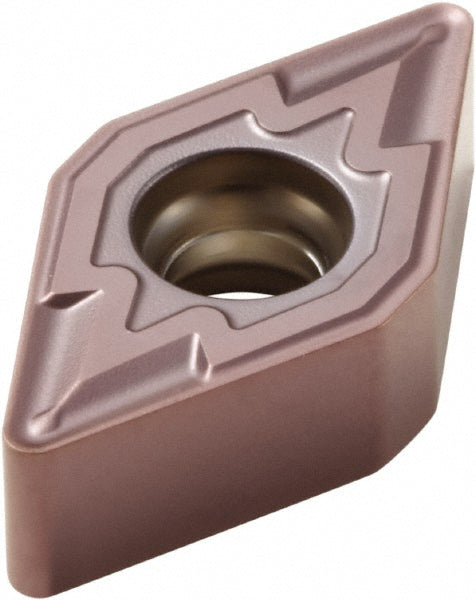

DNMU110404-M3 Carbide Insert, Grade TH1000, TiAlSiN - Seco 02825854
MFR# 02825854ISO/ANSI# DNMU331-M3Series DNMU-M3
$20.71List $26.57
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeTH1000
MaterialCarbide
CoatingTiAlSiN
Description
The Seco 02825854 is a DNMU110404-M3 carbide indexable insert, grade TH1000, TiAlSiN coated. Suited for superalloys & titanium, hard material.
Specifications
Chip breakerM3
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle55degree
Industry standard numberDNMU331-M3
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.9134
Insert materialCarbide
Insert shapeDiamond 55
Insert size code331
Insert styleDNMU
Insert thickness in3/16
Iso codeDNMU110404-M3
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number02825854
Manufacturer gradeTH1000
Material gradeS05; H05
Maximum depth of cut0.3819
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSuperalloys & Titanium; Hard Material
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
