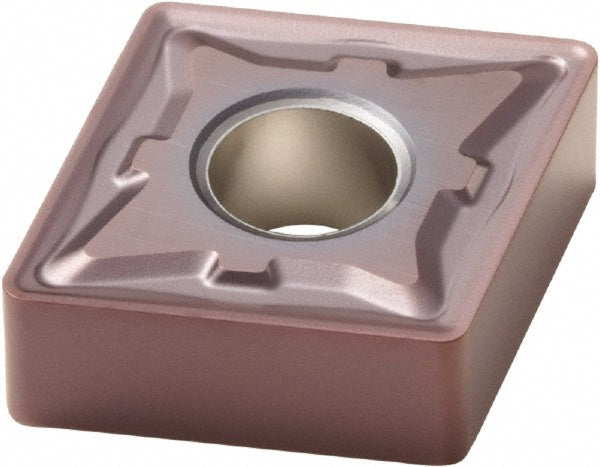

CNMG120412-M5 Carbide Insert, Grade TH1000, TiAlSiN - Seco 02825872

Seco

CNMG120412-M5 Carbide Insert, Grade TH1000, TiAlSiN - Seco 02825872

MFR# 02825872ISO/ANSI# CNMG120412Series CNMG-M5

$19.62List $25.16 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeTH1000
MaterialCarbide
CoatingTiAlSiN

Description

The Seco 02825872 is a CNMG120412-M5 carbide indexable insert, grade TH1000, TiAlSiN coated. Suited for superalloys & titanium, hard material.

Specifications

Ansi insert codeCNMG433
Ansi size code433
Chip breakerM5
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance; Hardened Materials (H) - High Wear Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2028
Included angle80
Industry standard numberCNMG433-M5
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code433
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120412-M5
Iso insert codeCNMG120412
Iso size code120412
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number02825872
Manufacturer gradeTH1000
Material gradeS05; H05
Maximum depth of cut0.4606
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
