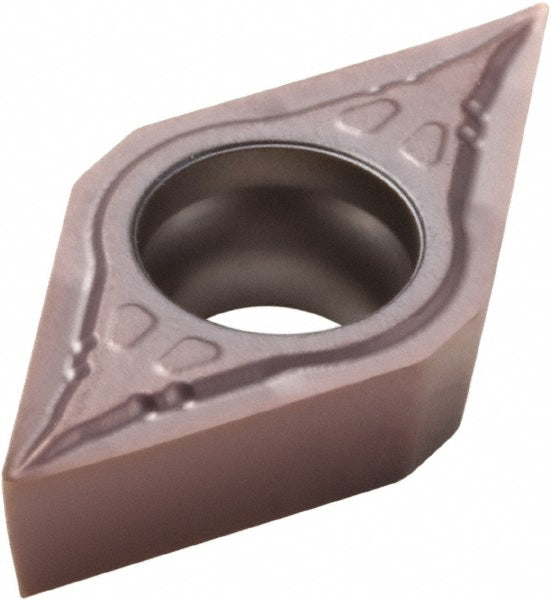

DCMT11T304-F1 Carbide Insert, Grade TH1000, TiAlSiN - Seco 02825905

Seco

DCMT11T304-F1 Carbide Insert, Grade TH1000, TiAlSiN - Seco 02825905

MFR# 02825905ISO/ANSI# DCMT32.51-F1Series DCMT-F1

$18.02List $23.11 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeTH1000
MaterialCarbide
CoatingTiAlSiN

Description

The Seco 02825905 is a DCMT11T304-F1 carbide indexable insert, grade TH1000, TiAlSiN coated. Suited for superalloys & titanium, hard material.

Specifications

Chip breakerF1
Clearance codeC
Coating finishTiAlSiN
Coating processPVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1772
Included angle55degree
Industry standard numberDCMT32.51-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9134
Insert materialCarbide
Insert shapeDiamond 55
Insert size code32.51
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T304-F1
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number02825905
Manufacturer gradeTH1000
Material gradeS05; H05
Maximum depth of cut0.4449
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSuperalloys & Titanium; Hard Material
RakePositive
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
