Seco

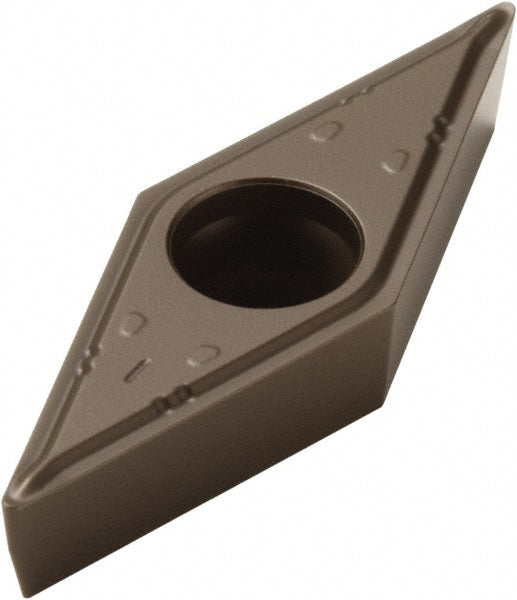

VBMT160404-F1 Carbide Insert, Grade TH1000, TiAlSiN - Seco 02825907
MFR# 02825907ISO/ANSI# VBMT331-F1Series VBMT-F1
$25.02List $32.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeTH1000
MaterialCarbide
CoatingTiAlSiN
Description
The Seco 02825907 is a VBMT160404-F1 carbide indexable insert, grade TH1000, TiAlSiN coated. Suited for superalloys & titanium, hard material.
Specifications
Chip breakerF1
Clearance codeB
Coating finishTiAlSiN
Coating processPVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1772
Included angle35degree
Industry standard numberVBMT331-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3078
Insert materialCarbide
Insert shapeDiamond 35
Insert size code331
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT160404-F1
Lead angle35degree
Length range0.7000 - 10.0000
Manufacturers catalog number02825907
Manufacturer gradeTH1000
Material gradeS05; H05
Maximum depth of cut0.6142
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSuperalloys & Titanium; Hard Material
RakePositive
Relief angle5
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
