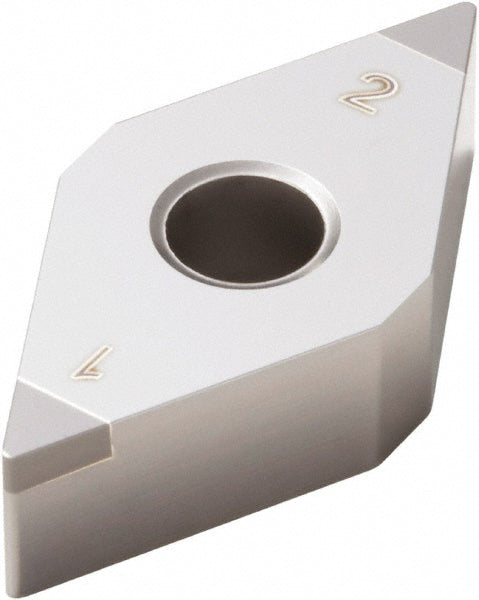

DNGA150408S-01020-L1-B Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade CBN010 - Seco 02825959

Seco

DNGA150408S-01020-L1-B Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade CBN010 - Seco 02825959

MFR# 02825959ISO/ANSI# DNGA432S-00420-L1-BSeries DNGA-Flat Top

$91.22
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeCBN010
MaterialPolycrystalline Cubic Boron Nitride (PCBN)

Description

The Seco 02825959 is a DNGA150408S-01020-L1-B polycrystalline cubic boron nitride (pcbn) indexable insert, grade CBN010. Suited for hard material.

Specifications

Chip breakerFlat Top
Clearance codeN
Coating processPCBN
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle55degree
Industry standard numberDNGA432S-00420-L1-B
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.1812
Insert materialPolycrystalline Cubic Boron Nitride (PCBN)
Insert shapeDiamond 55
Insert size code432
Insert styleDNGA
Insert thickness in3/16
Iso codeDNGA150408S-01020-L1-B
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number02825959
Manufacturer gradeCBN010
Material gradeH01; H10; H20
Maximum depth of cut0.0200
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakeNegative
Rake angle0
Relief angle0
Secondary workpiece materialSuper-alloys & Titanium
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tip length0.1060
Tolerance codeG
Width in1/2in
Wiper edgeNo
