Seco

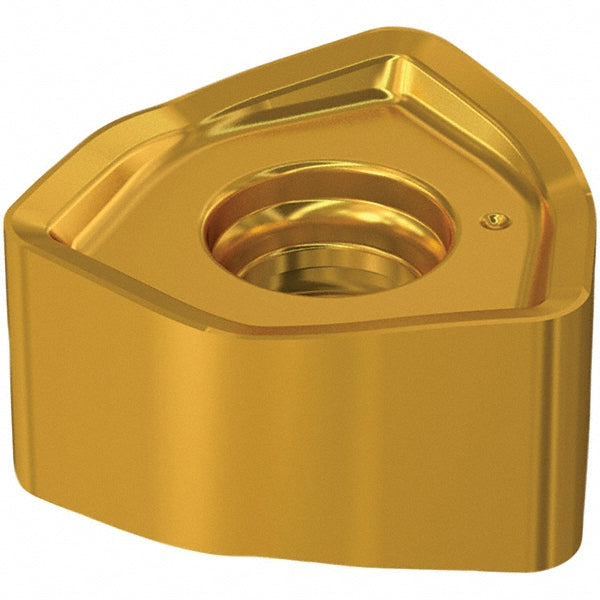

218.21-230TR-06-M15 Solid Carbide Insert, Grade F40M, TiAlN - Seco 02826530
MFR# 02826530ISO/ANSI# 218.21-230TR-06-M15Cat# 218.21-230TR-06-M15Series 218.21-230
$46.28List $58.32
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02826530 is a 218.21-230TR-06-M15 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi code218.21-230TR-06-M15
Chip breakerM15
Coating finishTiAlN
Coating processPVD
Convex radius0.3346
Corner radius0.0630
Cutter series compatibilityR220.21-R230
Cutting edge styleT-Land
Hole diameter0.1870
Included angle degree60
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size230
Insert size code230TR-06
Insert style218.21
Iso code218.21-230TR-06-M15
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog number218.21-230TR-06-M15
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.0710
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakeNegative
Rake angle17
Relief angle0.00
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeTrigon
Single or double sided insertDouble
StandardsISO
Thickness in15/64
Thickness range0.2200 to 0.2350
Width in1/2
