Seco

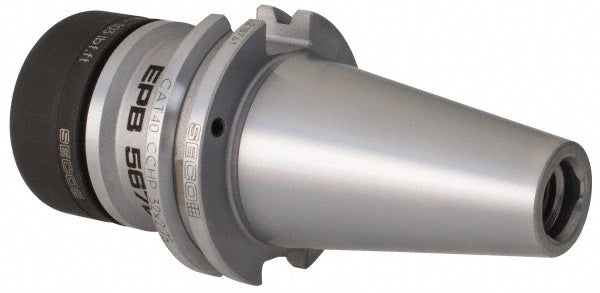

CAT40 Collet Chuck - Seco 02827268
MFR# 02827268
$495.58List $622.08
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 02827268 is a CAT40 Collet Chuck.
Specifications
Balanced to rpm30000
Collet nut diameter1.9685
Collet seriesER32
Collet systemER
Coolant typeThrough-Spindle & DIN Flange
Maximum collet capacity0.7874
Minimum collet capacity0.0787
Nose diameter1.9680
Overall length5.449
Projection2.7550in
Shank typeTaper
Taper sizeCAT40
Through coolantYes
