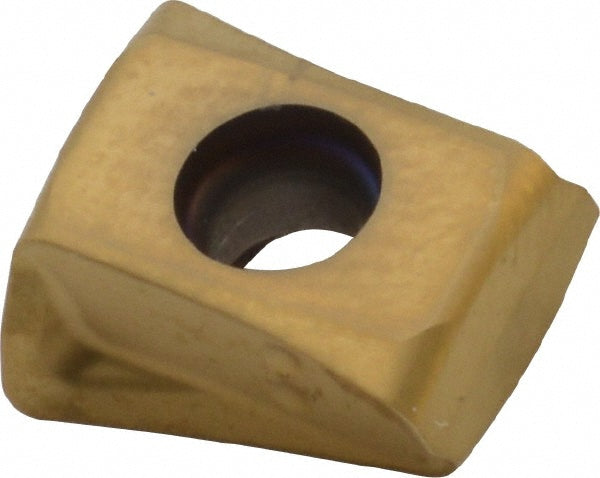

LOEX080408TR-M08 Solid Carbide Insert, Grade F40M, TiAlN - Seco 02827587
MFR# 02827587ISO/ANSI# LOEX080408TR-M08Cat# LOEX080408TR-M08Series LOEX-08
$38.74List $48.82
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02827587 is a LOEX080408TR-M08 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeLOEX080408TR-M08
Chip breakerM08
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityR217.94-08; R220.94-08
Cutting edge effective length0.3268
Cutting edge styleT-Land
Hole diameter0.2028
Included angle degree90
Inscribed circle0.1732
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size08
Insert size code080408
Insert styleLOEX
Iso codeLOEX080408TR-M08
Length0.3661
Length range0.3200 to 0.4000
Manufacturers catalog numberLOEX080408TR-M08
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.3268
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakeNegative
Rake angle34
Relief angle0
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeRectangle
Single or double sided insertDouble
StandardsISO
Thickness0.2598
Thickness range0.2500 to 0.3500
Width0.1732
